Détails de produit
Place of Origin: CHINA
Nom de marque: Link-pp
Certification: RoHS, REACH, UL
Model Number: 1-1840648-4
Conditions de paiement et d'expédition
Minimum Order Quantity: 1pcs，Free samples
Prix: $0.9 - $1.1
Packaging Details: Tray
Delivery Time: About 1-2 Days
Payment Terms: TT, NET30/60/90 Days, Western Union
Supply Ability: 50K Pieces per Week
Series: |
RJ45 2X1 |
Speed: |
1000BASE-T |
LED: |
GY/GY |
Tab: |
Up And Down |
Operating Temperature: |
0 ~ +70 °C |
EMI Tabs: |
Yes |
Series: |
RJ45 2X1 |
Speed: |
1000BASE-T |
LED: |
GY/GY |
Tab: |
Up And Down |
Operating Temperature: |
0 ~ +70 °C |
EMI Tabs: |
Yes |
| Parameter | Specification |
|---|---|
| Part Number | 1-1840648-4 |

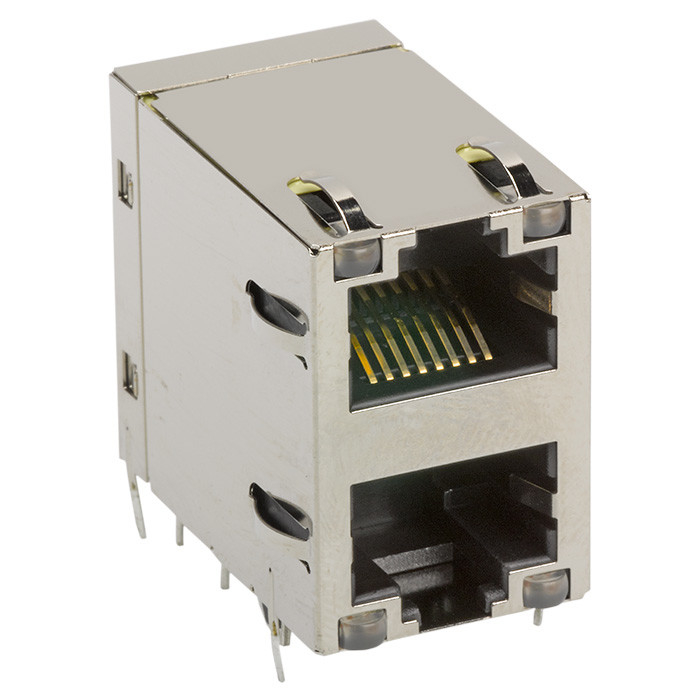

| Product Type | Integrated Connector Module (ICM) |
| Number of Ports | 2x1 |
| Port Configuration | Stacked |
| Supported Speed | 10/100/1000BASE-T |
| Duplex Mode | Full Duplex |
| Mounting Type | Through-Hole Mount |
| Height Profile | Standard |
| EMI Tabs | Yes |
| LED | Yes |
| LED Type | GY/GY |
| Isolation Voltage | 1500 |
| Compliance Standard | IEEE 802.3 |
| Operating Temperature Range | 0 ~ +70 |
| Flammability Rating | UL 94V-0 |
| Length | 28.12mm |
| Width | 17.16mm |
| Height | 25.50mm |
| RoHS Compliant | Yes |
★ Application: 10/100/1000 BASE-T
★ Impedance: 100 OHMS
★ Turns Ratio (Chip: Cable): 1:1 All Four Pairs
★ Open Circuit Inductance (OCL): 350Uh Min @100kHz, 0.1VRMS, 8mADC BIAS From 0°C To 70°C, All Four Pairs
All Four Pairs Bi-Directional
Performance @ 25°C:
★ Insertion Loss (IL): 1.1dB MAX FROM 0.5MHz TO 100MHz
★ Return Loss (RL): 18dB MIN FROM 0.5MHz TO 40MHz
12 - 20LOG(f/80)dB MIN FROM 40.1MHz TO 100MHz
★ Crosstalk Attenuation: 35dB MIN FROM 0.5MHz TO 40MHz
33 - 20LOG(f/50)dB MIN FROM 40.1MHz TO 100MHz
★ Common Mode Rejection Ratio (CMRR): 30dB MIN FROM 0.5MHz TO 100MHz
★ Isolation Voltage: 2250VDC (MAX) FOR 60 SECONDS WITH A RISE TIME OF 500V/SEC AND WITH ALL PORTS CONNECTED
