Détails de produit
Place of Origin: CHINA
Nom de marque: Link-pp
Certification: RoHS compliant
Model Number: 1840860‑1
Conditions de paiement et d'expédition
Minimum Order Quantity: 1pcs，Free samples
Prix: $1.2 - $3.5
Packaging Details: Tray
Delivery Time: About 3 Days
Payment Terms: TT, NET30/60/90 Days, Western Union
Supply Ability: 20K Pieces per Week
Part Number: |
1840860‑1 1840860‑2 1840860‑3 |
Series: |
Stack Magjack |
Housing: |
Thermoplastic Plastic |
Flammability rating: |
UL94 V-0 |
Shield: |
Brass |
Contacts: |
Phosphor bronze |
Part Number: |
1840860‑1 1840860‑2 1840860‑3 |
Series: |
Stack Magjack |
Housing: |
Thermoplastic Plastic |
Flammability rating: |
UL94 V-0 |
Shield: |
Brass |
Contacts: |
Phosphor bronze |
| Specification | 1840860‑1 | 1840860‑2 | 1840860‑3 |
|---|---|---|---|
| Number of Ports | 2×6 (Stacked) | 2×6 (Stacked) | 2×6 (Stacked) |
| Speed | 1000BASE‑T | 1000BASE‑T | 1000BASE‑T |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| EMI Tabs | Yes | Yes | Yes |
| LED Type | Green / Green | Yellow / Green | Green / Yellow |
| Height Profile | Standard | Standard | Standard |
| Operating Temp. | 0°C to +70°C | 0°C to +70°C | 0°C to +70°C |
| RoHS Compliant | Yes | Yes | Yes |
| Compliance | IEEE 802.3 | IEEE 802.3 | IEEE 802.3 |
| Shielding | Integrated | Integrated | Integrated |

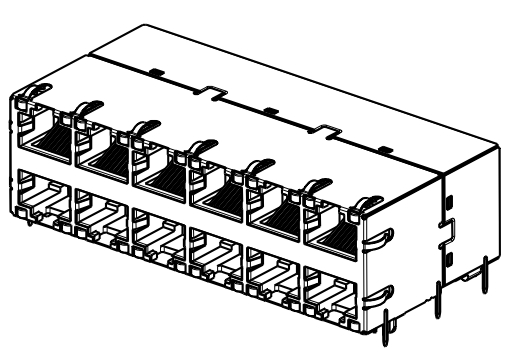

1. 2x6 Stacked Port Design: Provides 12 RJ45 ports in a compact footprint, saving valuable PCB space in high-density Ethernet applications.
2. Integrated Magnetics: Built-in isolation transformers and common-mode chokes for each port ensure signal integrity and compliance with IEEE 802.3 standards (10/100/1000BASE-T).
3. LED Indicators: Each port includes bi-color LEDs (e.g., Green/Yellow, Yellow/Green, Green/Green) for status indication of Link, Activity, and Speed, enhancing diagnostics and monitoring.
4. Shielded Construction with EMI Tabs: Full metal shielding and EMI ground fingers reduce electromagnetic interference and improve overall system reliability.
5. Through-Hole Mounting: Ensures strong mechanical retention and durability in rugged environments, ideal for networking hardware such as switches, routers, and servers.
6. RoHS Compliant and Lead-Free: Environmentally friendly design, fully compliant with RoHS 2011/65/EU and 2015/863 regulations.
7. Operating Temperature Range: 0°C to +70°C: Suitable for commercial and indoor industrial Ethernet applications.
8. Durable Contact & Shield Materials: Uses high-performance thermoplastic (UL94V-0), phosphor bronze contacts with selective gold plating, and nickel-plated brass shields to ensure long-term reliability and signal performance.
