Place of Origin: Guangdong,China
Nom de marque: LINK-PP
Certification: UL,RoHS,Reach,ISO
Numéro de modèle: LPJE8802-3C-M7NLR
Document: LPJE8802-3C-M7NLR.pdf
Conditions de paiement et d'expédition
Minimum Order Quantity: 400/2000/10K/25K
Prix: $0.49
Packaging Details: T&R
Délai de livraison: dans Stock Ship Aujourd'hui
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Numéro de pièce: |
LPJE8802-3C-M7NLR |
Catégorie: |
Connecteur modulaire RJ45 (type CMS) |
Marques compatibles: |
Te |
Nombre de ports: |
1x1 |
Loquet: |
Vers le bas |
Catégorie de performance: |
Chat 5 |
Nombre de points de contact: |
8p8c |
Type de montage: |
Smt |
Option LED: |
Sans |
Les onglets EMl: |
Avec |
Bouclier métallique: |
Blindé |
Orientation: |
À angle droit (entrée latérale) |
Numéro de pièce: |
LPJE8802-3C-M7NLR |
Catégorie: |
Connecteur modulaire RJ45 (type CMS) |
Marques compatibles: |
Te |
Nombre de ports: |
1x1 |
Loquet: |
Vers le bas |
Catégorie de performance: |
Chat 5 |
Nombre de points de contact: |
8p8c |
Type de montage: |
Smt |
Option LED: |
Sans |
Les onglets EMl: |
Avec |
Bouclier métallique: |
Blindé |
Orientation: |
À angle droit (entrée latérale) |

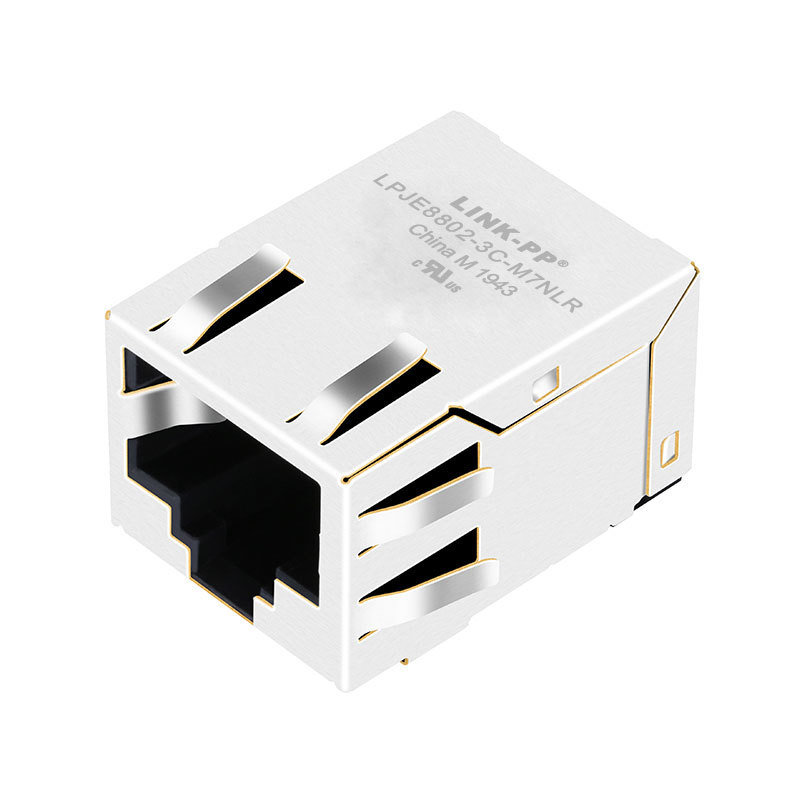

The LPJE8802-3C-M7NLR is a compact, shielded RJ45 8P8C SMD modular jack designed for high-speed Ethernet and communication devices.
It offers superior signal integrity, stable contact performance, and compliance with UL safety standards.
With a latch-down design and SMD reflow compatibility, it is ideal for automated PCB assembly in compact networking equipment.
| Parameter | Specification |
|---|---|
| Voltage Rating | 125V AC |
| Current Rating | 1.5A |
| Contact Resistance | ≤ 20 mΩ |
| Insulation Resistance | ≥ 500 MΩ @ 500V DC |
| Dielectric Strength | 1000V AC (50/60Hz, 1 min) |
| Parameter | Specification |
|---|---|
| Housing Material | PA9T, Black, UL 94V-0 Flame Retardant |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold ≥ 6 µin (in contact area) |
| Shield Material | Brass, Nickel Alloy Plated |
| Mating Cycles | ≥ 750 Cycles |
| Parameter | Specification |
|---|---|
| Operating Temperature | -20°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Soldering Method | IR Reflow Compatible |
| UL Certification | File No. E484635 |
| Stage | Temperature | Duration |
|---|---|---|
| Preheat (TA–TB) | 150–200°C | 60–180s |
| Holding (TL) | 217°C | 60–150s |
| Peak (TP) | 255°C (+0/-5°C) | ≤ 5s |
| Heating Rate | ≤ 3°C/s | |
| Cooling Rate | ≤ 6°C/s | |
| Total Reflow Time (25°C → out of oven) | ≤ 6 minutes |
LINK-PP is a trusted global manufacturer of Ethernet magnetic connectors, RJ45 modular jacks, and integrated magnetics with more than 20 years of experience.
We supply high-quality, cost-effective connectivity solutions that meet international standards and are compatible with leading brands such as Pulse, Wurth Elektronik, Halo, and Tyco.
All LINK-PP products are produced under strict quality control systems (ISO 9001 & ISO 14001 certified) and fully comply with UL, RoHS, and REACH regulations.
By choosing LINK-PP, you gain access to:
Comprehensive Support: Professional engineering team and global logistics
LINK-PP helps your network equipment achieve stable signal transmission, lower EMI, and higher durability, ensuring optimal performance in demanding industrial and communication environments.
