Name: LPJK7436A98NL Low-Profile RJ45 Connector with 1000Base-T Magnetics
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: Je ne sais pas.
Price: 1.06 USD
Availability: InStock

Détails de produit

Place of Origin: Guangdong,China

Nom de marque: LINK-PP

Certification: UL,RoHS,Reach,ISO

Numéro de modèle: Je ne sais pas.

Conditions de paiement et d'expédition

Minimum Order Quantity: 400/2000/10K/25K

Prix: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Obtenez le meilleur prix

Détails de produit

Description de produit

Mettre en évidence:
                                                                                                                                                                                                                                                                                                                                    LPJK7436A98NL, 1×1 RJ45 Connector, RJ45 Connector with with Integrated Magnetics


Numéro de pièce:	Je ne sais pas.	Type de connecteur:	RJ45 Jack avec le Magnetics intégré
Marques compatibles:	Wurth	Nombre de ports:	1x1
Loquet:	En haut	Taux de données:	1000Base-T
Poe:	Non	Option LED:	Avec
Les onglets EMl:	Avec	Type de montage:	Tht
Type de soudure:	Vague	Plage de température de fonctionnement:	-40 ° C à + 85 ° C

Numéro de pièce:	Je ne sais pas.
Type de connecteur:	RJ45 Jack avec le Magnetics intégré
Marques compatibles:	Wurth
Nombre de ports:	1x1
Loquet:	En haut
Taux de données:	1000Base-T
Poe:	Non
Option LED:	Avec
Les onglets EMl:	Avec
Type de montage:	Tht
Type de soudure:	Vague
Plage de température de fonctionnement:	-40 ° C à + 85 ° C

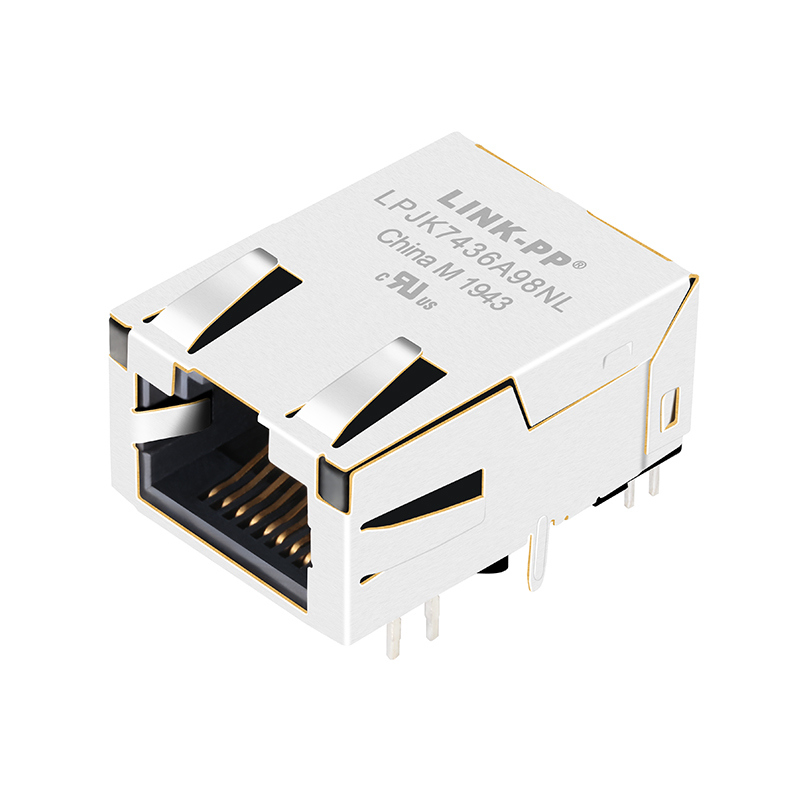

LPJK7436A98NL Low-Profile RJ45 Connector with 1000Base-T Magnetics

Key Features:

Single-port 1×1 RJ45 jack supporting 10 / 100 / 1000Base-T Ethernet (Gigabit) speeds.
Low-profile form-factor: package height approx 11.30 mm.
Through-hole (THT) mounting side-entry (“Tab Up” latch orientation) configuration.
Built-in LED indicators: Orange & Green / Yellow option.
Integrated magnetics: 1CT:1CT turns ratio (primary: secondary) for TX/RX channel sets.
Shielded connector with EMI tabs.
Compliance: IEEE 802.3 (Ethernet) standard, RoHS, REACH, UL certifications.
Operating temperature range: –40 °C to +85 °C for many listings (note: confirm with datasheet for your variant)

Specifications:

Category	Parameter	Value
General Information	Part Number	LPJK7436A98NL
	Manufacturer	LINK-PP INT'L TECHNOLOGY CO., LTD
	Product Type	RJ45 Connector with Integrated Magnetics
	Profile	Low-Profile, Side Entry
Electrical Characteristics	Data Rate	10/100/1000 Mbps
	Turns Ratio (TX/RX)	1CT : 1CT
	Hi-Pot Voltage	1500 Vrms
	Insertion Loss	≤ 1.0 dB (1-100 MHz)
	Return Loss	≥ 16 dB (1-40 MHz)
	Crosstalk	≥ 30 dB (1-100 MHz)
Mechanical Data	Mounting Type	Through-Hole (THT), 90° Angle
	Orientation	Tab Up
	Height	11.30 mm
	Shield Type	Full Metal Shield with EMI Tabs
Material & Finish	Housing	PBT + 30% GF, UL94V-0
	Contact	Phosphor Bronze, Gold Plated (6 µin min)
	Shield	SUS 304 Stainless Steel
Environmental	Operating Temp	–40 °C to +85 °C
	Storage Temp	–40 °C to +85 °C
	RoHS / REACH	Compliant
Compliance & Safety	Ethernet Standard	IEEE 802.3 (10/100/1000Base-T)
	UL Certification	E484635
Typical Applications		Compact Routers, IP Cameras, Network Modules, IoT Devices

Applications:

Space-constrained network equipment such as smart cameras, embedded modules, compact routers, and consumer/industrial networking devices.
Devices requiring full Gigabit Ethernet connectivity in low-profile PCB layouts.
Networking products where integrated magnetics simplify board design and EMI/EMC performance.

RJ45 Connector with Integrated Magnetics Details:

LPJK7436A98NL Low-Profile RJ45 Connector with 1000Base-T Magnetics 0

LPJK7436A98NL Low-Profile RJ45 Connector with 1000Base-T Magnetics 1

LPJK7436A98NL Low-Profile RJ45 Connector with 1000Base-T Magnetics 2

Design & Layout Considerations:

Use the recommended PCB footprint and retaining post layout as per manufacturer drawing (see datasheet).
Ensure side-entry orientation (Tab Up) matches your board design and mechanical constraints.
Verify that the LED orientation and colours match your system design and visual indications.
For thermal design: though rated to –40 °C to +85 °C, ensure that adjacent components and board layout do not exceed the connector’s thermal limits.
Review EMI/EMC shielding strategy: connector’s EMI tabs should be tied to board ground appropriately to ensure optimal performance.
Because of integrated magnetics, carefully consider board stackup and signal integrity around the RJ45 region (especially if high-speed or PoE is involved).
