Détails de produit
Lieu d'origine: Chine
Nom de marque: LINK-PP
Certification: UL,ROHS,Reach,ISO
Numéro de modèle: Les produits de base doivent être présentés dans un emballage de qualité supérieure.
Conditions de paiement et d'expédition
Quantité de commande min: 50/500/1000
Prix: $0.09-$3.85
Détails d'emballage: 50pcs/tray, 1200pcs/carton
Délai de livraison: dans Stock Ship Aujourd'hui
Conditions de paiement: TT, net30 / 60/90 jours
Capacité d'approvisionnement: 4200K-PCS/Month
Numéro de pièce: |
HFJV1-1G46RL / HFJV1-E1G46RL |
Équivalent: |
Le numéro de téléphone est le numéro de téléphone de l'entreprise. |
Salut-pot: |
1500 Vrms |
C.O.L.: |
350 uH min à 8 mA de polarisation CC |
Lecteur PHY: |
Tension |
Taper: |
Connecteur RJ45 vertical avec 1000 magnétiques |
Numéro de pièce: |
HFJV1-1G46RL / HFJV1-E1G46RL |
Équivalent: |
Le numéro de téléphone est le numéro de téléphone de l'entreprise. |
Salut-pot: |
1500 Vrms |
C.O.L.: |
350 uH min à 8 mA de polarisation CC |
Lecteur PHY: |
Tension |
Taper: |
Connecteur RJ45 vertical avec 1000 magnétiques |

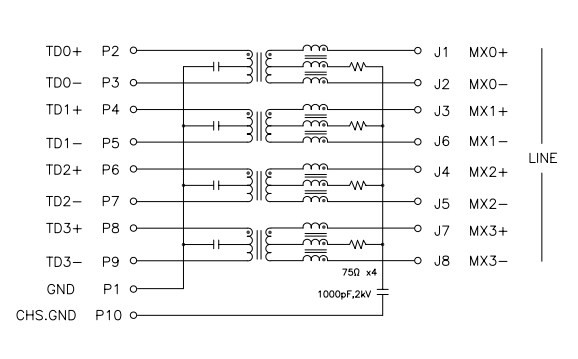

1x1 vertical shielded Gigabit RJ45 MagJack with integrated transformers, IEEE-802.3 compliant, available in standard (HFJV1-1G46RL) and industrial-temperature versions (HFJV1-E1G46RL) for networking and industrial applications.
1-port RJ45 Connector with integrated magnetics
Supports 10/100/1000Base-T Ethernet
Without LEDs
Compatible with PoE / PoE+ (IEEE 802.3af/at)
Low cross-talk & superior EMI suppression
TOP-Entry Mounting
RoHS-compliant, Halogen-free options available
Shielded housing for noise immunity
| Parameter | Specification |
|---|---|
| Ethernet Speed | 10/100/1000 Mbps |
| Transformer Ratio | 1:1 (Gigabit) |
| Compliant | IEEE 802.3 compliant |
| HI-POT | 1500VAC, 60s |
| Insulation Resistance | ≥ 500MΩ |
| Contact Resistance | ≤ 40mΩ |
| Insertion/Withdrawal Cycles | 750+ cycles |
| Parameter | HFJV1-1G46RL / HFJV1-E1G46RL |
|---|---|
| Connector Type | RJ45 Magnetic Jack |
| Port Count | 1 port |
| LED | No LEDs |
| Orientation | Top-Entry |
| Shield | Yes |
| Operating Temperature | 0°C to +70°C / -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 0–95% RH |
