Détails de produit
Lieu d'origine: Chine
Nom de marque: LINK-PP
Certification: EU RoHS and REACH Compliance
Numéro de modèle: SFPC-PF
Conditions de paiement et d'expédition
Quantité de commande min: 10 pièces
Prix: $0.8
Détails d'emballage: Ruban et moulinet
Délai de livraison: En stock navire dans les 3 jours
Conditions de paiement: Western Union, T/T, D/P, D/A
Capacité d'approvisionnement: 5kk par bouche
Numéro de pièce: |
SFPC‑PF |
Type de connecteur: |
Cage SFP+ (10GbE) |
Type de montage: |
Montage PCB à angle droit, ajustement par pression |
Matériau de cage: |
Métal, blindé EMI |
Nombre de ports: |
1 port |
Température de fonctionnement: |
-40°C à +85°C |
Numéro de pièce: |
SFPC‑PF |
Type de connecteur: |
Cage SFP+ (10GbE) |
Type de montage: |
Montage PCB à angle droit, ajustement par pression |
Matériau de cage: |
Métal, blindé EMI |
Nombre de ports: |
1 port |
Température de fonctionnement: |
-40°C à +85°C |

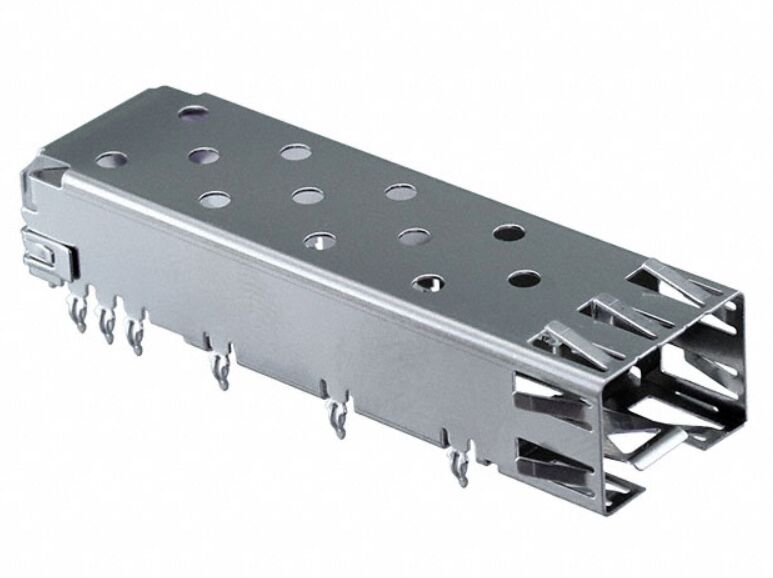

The SFPC-PF SFP+ Cage is a robust, high-speed SFP+ connector designed for 10GbE and high-frequency networking applications. Engineered for seamless PCB integration, it ensures reliable signal integrity and mechanical stability. Compatible with industry-standard SFP+ transceivers, this cage is ideal for enterprise networking, data centers, and telecommunication equipment.
The SFPC-PF SFP+ Cage provides engineers with a reliable, high-performance solution for 10GbE networking, combining industry-standard compliance, robust EMI shielding, and SMT-friendly design for rapid PCB assembly.
| Parameter | Specification |
|---|---|
| Part Number / Series | SFPC‑PF (SFP+ Cage, Press‑Fit) |
| Connector Type | SFP+ Cage Assembly (for MECT / SFPE transceivers) |
| No. of Ports | 1‑port (standard) |
| Termination Style | Press‑Fit (PF) to PCB; also available in Solder Lead (SL) / PCI Press‑Fit (PC) options |
| Mounting Orientation | Right‑angle PCB mount (Press‑Fit) |
| Usage | SFP+ 10Gb/s hot‑pluggable transceiver cage interface |
| Cage Material | Metal shielded cage (typically nickel/steel alloy) |
| EMI Shielding | Full metal EMI shielding, compliant with industry SFP+ form‑factor |
| Standard Compliance | SFP+ SFF MSA form‑factor compliant (10GbE, high‑speed I/O) |
| Panel/Kit Options | Available with panel mount kit (SFPK series) options in 2‑port or 4‑port |
| Typical Cage Dimensions | ~48.73 mm (length) × ~14.0 mm (width) × ~8.95 mm (height) (based on SFPC series generic data) |

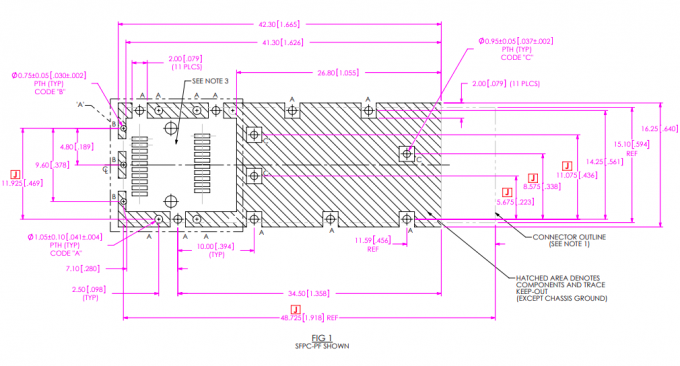

| PCB Footprint | Designed for standard SFP/SFP+ host board footprint (Pin‑compatible with MECT socket) |
| Operating Temperature | Typical industrial range (often –40°C to +85°C depending on design) Confirmed per SFP+ industry norm |
| RoHS Compliance | RoHS compliant according to supplier listings |
A1: It is a right-angle PCB mount with press-fit termination, enabling secure mechanical retention without soldering.
A2: SFPC‑PF supports 10GbE SFP+ transceivers, providing reliable high-speed connectivity.
A3: Yes, the cage is fully metal shielded, protecting against EMI/RFI and maintaining signal integrity.
A4: Yes, it is SFP+ MSA form-factor compliant, supporting both optical and electrical SFP+ modules.
A5: The standard operating range is -40°C to +85°C, suitable for industrial and data center environments.
A6: It is designed as a single-port cage. Multi-port options are available in the SFPC/SFPK family.
A7: Yes, the press-fit design allows for automated insertion into PCBs without soldering, ideal for high-volume production.
A8: Yes, SFPC‑PF can be combined with panel mount kits (SFPK series) for multi-port or chassis-mounted configurations.
